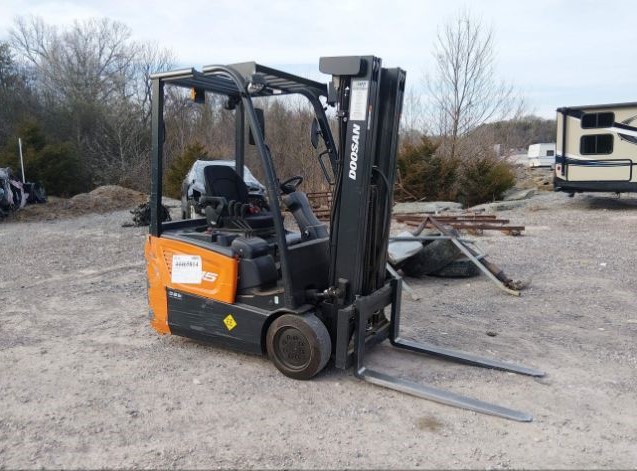

2022 Doosan B15T-7PLUS
- Unit#
- 4207
- Price:
- $16,900
Detailed Specifications
| Truck Type | High-Capacity Forklift |
| Serial No. | FBA11381006656 |
| Odometer | 1,220 |
Comments
The
Doosan (now Bobcat) B15T-7 Plus
is a 3-wheel electric counterbalance forklift designed for high maneuverability in tight warehouse spaces. The "Plus" series specifically features upgraded AC motors and enhanced safety systems compared to the standard 7-series. Core Performance & Capacity
- Rated Load Capacity: 3,000 lbs (1,500 kg).
- Load Center: 24 inches (500 mm).
- Travel Speed: Up to 10.6 mph (17 km/h).
- Lift Speed: 78.7 ft/min (0.4 m/s) loaded; 118 ft/min (0.6 m/s) unloaded.
- Gradeability: 26% (loaded) at 1.0 mph.
Electrical & Power System
- Voltage Options: Available in 36V or 48V configurations.
- Battery Capacity:
- 48V: 440 Ah (Lead-acid).
- Li-ion Option: 51.2V / 400–600 Ah.
- Motor Type: Dual drive motors (6.0 kW x 2) and a 14.0 kW lift motor, all using a Full AC System
Dimensions & Maneuverability
- Turning Radius: 59.6 inches (1,515 mm).
- Length to Fork Face: 74.4 inches (1,891 mm).
- Overall Width: 42.9 inches (1,090 mm).
- Overhead Guard Height: 79 inches (2,010 mm).
- Ground Clearance: 3.4 inches (86 mm) under the mast.
